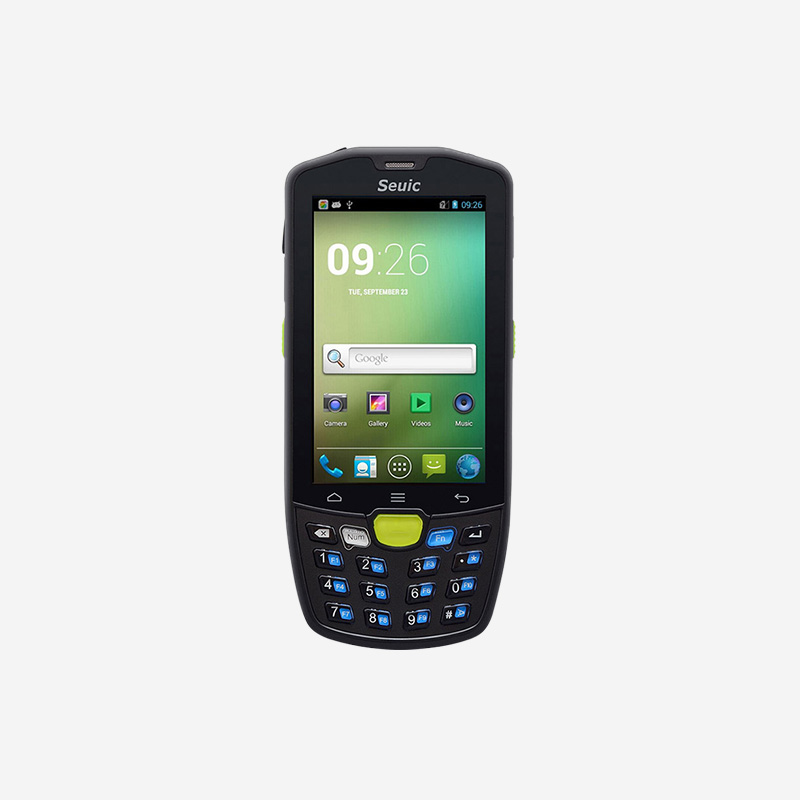

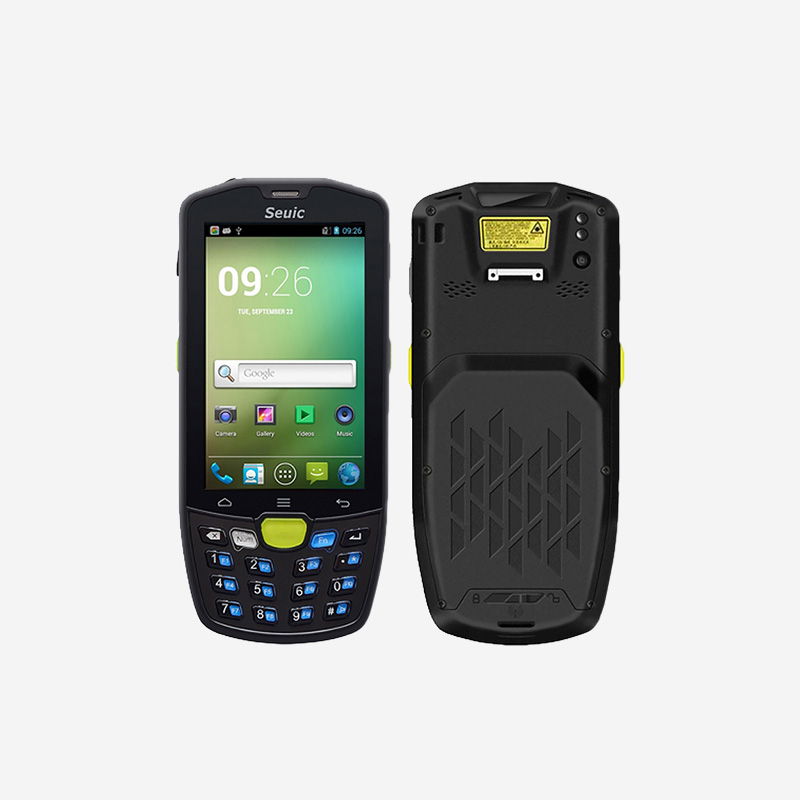

SEUIC AUTOID9 Handheld Computer

The SEUIC AUTOID9 Handheld Terminal is a smart, portable industrial Android Handheld Terminal. The viewing angle of this device is at an exact 178° degree, which means that you are able to get the exact crisp and colour saturation even when glancing at the screen sideways. Furthermore, it also supports glove and wet operations making position detection accurate at all times. It is truly the new generation of touch and visual experience.

  • Innovative Keypad Button Design to Enhance the User Experience
  • Wet and Glove Touch Panel
  • 178° Degree Full Viewing Angle
  • Real-time Data Transmission for Business Operations
  • Suitable for Pickup/Delivery, Store Management, and Manufacturing Environment
Category: Brand:

Description

Category Specification Details
Physical Characteristics Dimensions 156 × 70 × 22 mm (H × W × T)
Weight 270 g
Display 4.0-inch WVGA, 800 × 480
Touch Panel Multi-touch, supports gloves and wet hands
Main Battery Detachable 3.8V 4000mAh Li-ion rechargeable battery
Backup Battery Built-in Li-ion backup battery
Charging Micro USB (PC / charger auto-detection), supports charging dock
Expansion Slot Micro SD card, up to 32GB SDHC compatible
Notification Sound, vibration, LED indicator
Keypad 17 keys / 22 crystal backlit keys
Audio Voice & Audio Built-in loudspeaker and microphone
Performance CPU Cortex-A53 4-core 1.2GHz / Cortex-A53 8-core 1.8GHz
Operating System Android 5.1 / Android 8.1 / Android 9.0
Memory RAM + ROM 2GB + 16GB / 3GB + 16GB
Development Environment Operating System Android 5.1 / 8.1 / 9.0
Programming Language Java
Tools Eclipse / Android Studio
Data Capture Scan Engines SE955 / SE965 / UE966 (1D standard range)
SEUIC X3 / X3 MR (1D/2D imaging)
N6603 SR / N6703 (standard 1D/2D imaging)
Camera 13MP, auto-focus
Supports up to 3264×2448 photos and 1080P 60fps video
NFC ISO15693, ISO14443A/B (non-encrypted), Mifare S50/S70 and compatible cards,
NFC protocol and ID certificates support
Wireless Connectivity WLAN, WWAN, Bluetooth, GNSS
Environmental Operating Temperature -20°C to +50°C
Storage Temperature (Battery Included) -40°C to +60°C
Storage Temperature (Battery Excluded) -40°C to +70°C
Humidity 5% – 95% RH (Non-condensing)
Drop Specification Multiple 1.5m drops to marble across operating temperature range
Tumble Specification 1,000 tumbles from 0.5m (≈ 2,000 impacts)
Protection Sealing IP67 (IEC sealing specification)
ESD Protection ±15kV air discharge, ±8kV direct discharge
