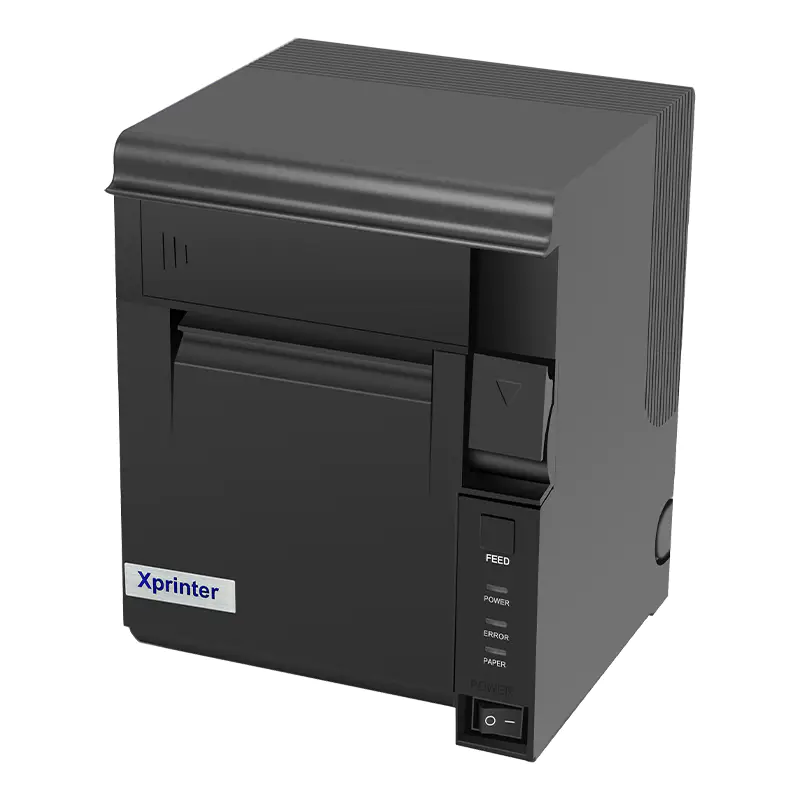

| Model | XP-D300M |
| Printing | |
| Printing method | Direct thermal |
| Paper width | 79.5±0.5mm Φ80mm |
| Print width | 72mm/ 76mm/ 80mm/ 64mm/ 48mm/ 52mm |
| Column capacity | 576 dots/line(adjustable by command) |
| Max. print speed | 300 mm/s |
| Interface | USB+Serial+Lan |
| Line spacing | 3.75mm (Adjustable by commands) |
| Column number | 80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/ Chinese,traditional Chinese - 21 columns or 24 columns |
| Character size | ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots） |
| Cutter | |
| Auto cutter | Partial |
| Barcode Character | |
| Extension character sheet |
PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251） |
| Barcode types | UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D Barcode | QR Code / PDF417 |
| Input buffer | 2048 Kbytes |
| NV Flash | 256 Kbytes |
| Power | |
| Power adaptor | Input：AC110V/240V、50~60Hz
Output: DC 24V/2.5A |
| Printer input | DC 24V/2.5A |
| Cash drawer | DC 24V/1A |
| Physical characteristics | |
| Weight | 1.44KG |
| Dimensions | 144.5×146×188.5mm ( D×W×H) |
| Environmental Requirements | |
| Operation environment | Temperature :0～45℃ humidity: RH 10～80% |
| Storage environment | Temperature: -10～60℃ humidity: RH 10～90% |
| Reliability | |
| Cutter life | 1.5 million cuts |
| Printer head life | 150 KM |
| Software | |
| Emulation | ESC/POS |
| Driver | Windows/JPOS/Linux/Android/Mac/ OPOS |
| Utility | Windows & Linux test Utility |
| SDK | iOS/Android/Windows |
