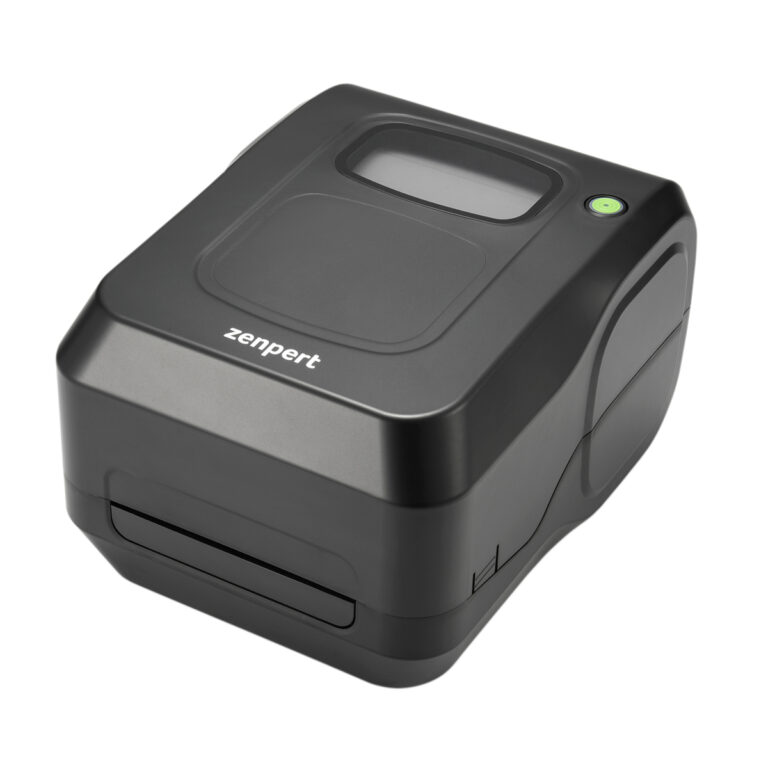

Zenpert 4T520

A reliable 4-inch thermal barcode printer designed for retail, warehouse, logistics, and shipping applications. It supports both Thermal Transfer and Direct Thermal printing, delivering clear labels at 203 DPI resolution with print speeds up to 152 mm/s (6 ips). The printer supports label widths up to 108 mm (4.25″), accommodates 5-inch label rolls, and is compatible with TSPL, EPL, ZPL, ZPL II, and DPL printer languages for easy integration with various systems.

Key Features:

203 DPI print resolution
Thermal Transfer & Direct Thermal printing
Up to 152 mm/s (6 ips) print speed
Maximum print width: 108 mm (4.25″)
Supports 300 m and 110 m ribbons
USB 2.0 connectivity
Compact and lightweight design (2.0 kg)
Compatible with TSPL, EPL, ZPL, ZPL II, and DPL languages
Ideal for barcode, shipping, inventory, and product labeling applications.

; Product / Service Request

Product Request Form

Specification

PRINTER MODEL	4T520
Resolution	8 dots/mm (203 DPI)
Printing method	Thermal Transfer & Direct Thermal
Max. print speed	152 mm (6”)
Max. print width	108 mm (4.25”)
Max. print length	25,400 mm (1,000″) 11,430 mm (450“)
Enclosure	PC and ABS plastic
Physical dimension	211 mm(W) x 164 mm(H) x 279 mm(D) 8.31” (W) x 6.46” (H) x 10.98” (D)
Weight	2.0 kg (4.41 lbs.)
Label roll capacity	127 mm (5”) OD
Ribbon	300 m long, max. OD 67 mm, 1” core (ink coated outside) 110 m long, max. OD 40 mm, 0.5” core (ink coated outside)
Interface	4T520/4T530: USB 2.0 4T520P/4T530P: USB 2.0 + Ethernet
Printer language	TSPL-EZD (Compatible with EPL, ZPL, ZPL II, DPL)
Accessories	· Quick start guide · USB cable · Power cord · External universal switching power supply · Label spindle x 1, fixing tab x 2 · 1” ribbon spindle x 2 · 0.5” ribbon spindle x 2
