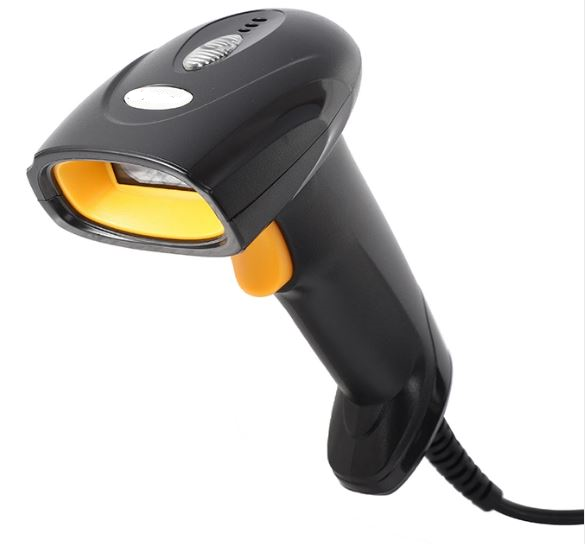

Q207
2D Corded Handheld Scanner
- Ergonomic,snappy and stylish, easy to hold
- 300,00 pixels, minimum resolution : 4 mils
- Supports free switch between handheld & auto-detection mode.
- Accurate identification of universal 1D&2D barcode.
- Extraodinary DM, Datamatrix, Maxicode decoding ability.
- works with all operating systems.
Product Request Form
| Performance Parameter | ||
| Light Source | LED White light | |
| Image sensor | 640*480 pixels | |
| Resolution(maximum) | 0.102mm / 4mils | |
| Print contrast ratio(minimum) | ≥20% | |
| Reading Angle | Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° | |
| Decoding Capability | 1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. |
|
| Reading Indicators | LED light&Buzzer(adjustable tone and volume) | |
| The typical depth of Filed | Precision Barcode Depth of Filed 3.34mil CODE 128 10mm-60mm 5mil CODE128 5mm-90mm 3.34mil EAN-13 10mm-55mm 5mil EAN-13 5mm-85mm 13.34mil EAN-13 20mm-190mm 5mil PDF417 5mm-75mm 10mil PDF417 5mm-190mm |
15mil PDF417 10mm-200mm 10mil DM 5mm-100mm 20mil DM 5mm-210mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) |
| Environmental Parameter | ||
| ESD protection(Air discharge) | 8 kV | |
| Drop resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. | |
| Particulate and water sealing | IP52 | |
| Temperature | Operation: 0 to 40 °C Storage/Transport: -40 to 70 °C |
|
| Humidity(non-condensing) | 5 - 95% | |
